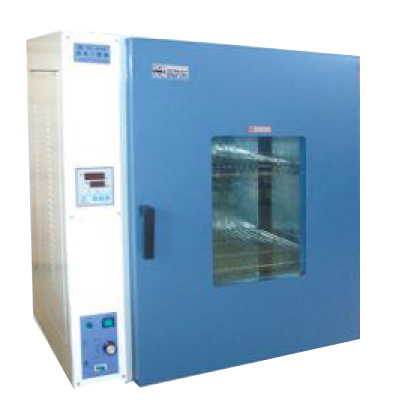

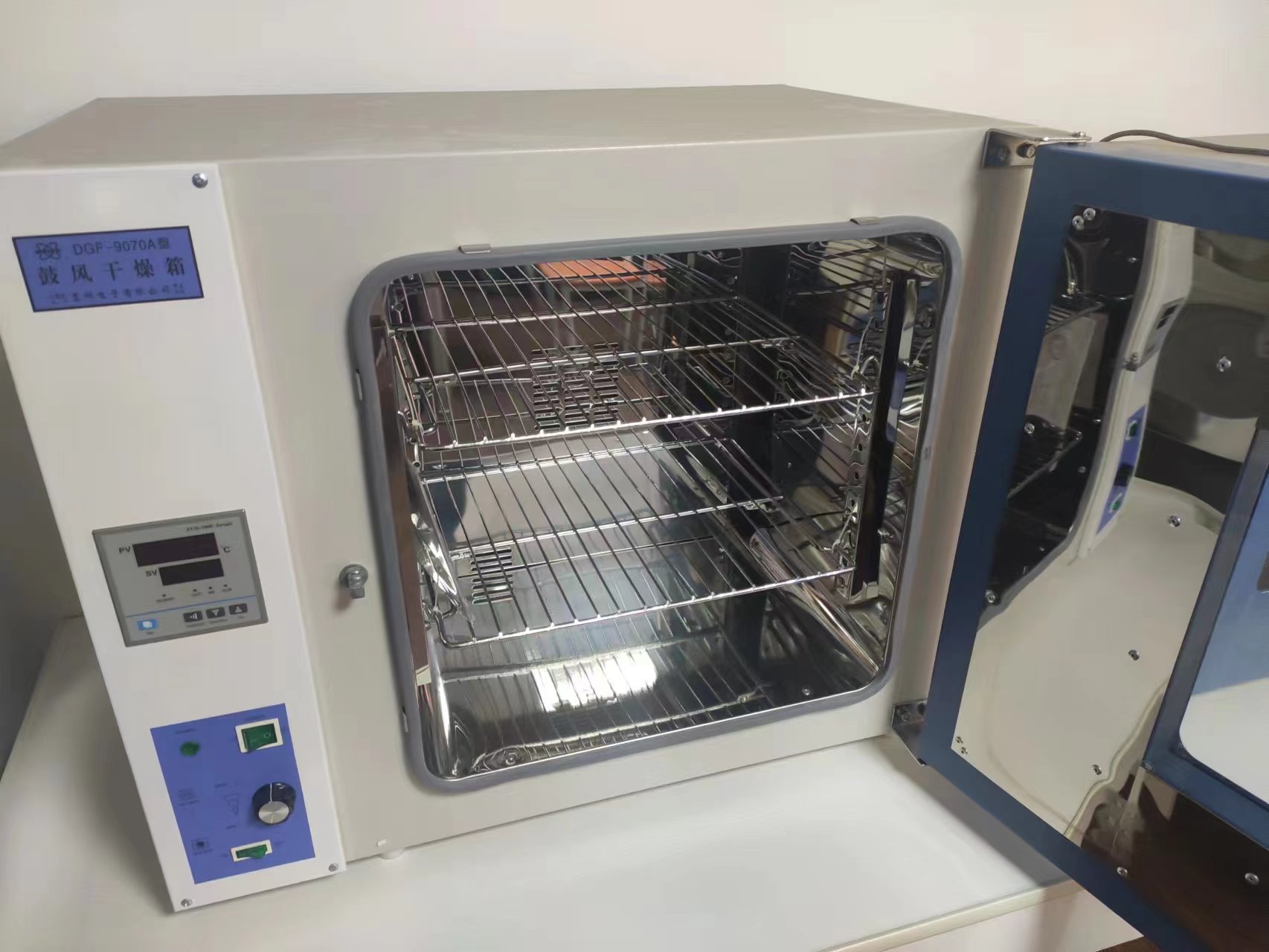

鼓风干燥箱

了解更多

    产品详情

    微电脑控制(带定时)Microprocessor control(with timing function)

    用途概述Summary

    供工矿企业、化验室、科研单位等做干燥、烘焙熔蜡、灭菌作用。
    Provided to industrial and mining enterprises, laboratories and scientific research institutes for desiccation, torrefaction, wax-melting and sterilization.

    产品特点Features

    ◆箱体内均采用不绣钢或优质冷轧钢板制作而成,箱体外采用优质钢板,造型美观,新颖。
    ◆采用具有超温偏差保护、数字显示的微电脑P.I.D温度控制器,带有定时功能,控温精确可靠。具有超温过热、漏电、传感器故障报警功能。(可选智能型液晶程序温度控制器)
    ◆热风循环系统由能在高温下连续运转的风机和合适风道组成。提高工作室内温度均匀。
    ◆独立限温报警系统,超过限制温度即自动中断,保证实验安全运行不发生意外。(选配)
    ◆具有RS485接口可连接计算机,能记录温度参数的变化状况。(选配)
    ◆Interior of oven is made of specular stainless steel by argon-arc-welding technics, and the exterior of oven is made of high-quality steel sheet with a beautiful and novel appearance.
    ◆Microprocessor PID temperature controller with temperature control protection, digits display and timing function ensures a precise and reliable temperature control. It has the functions of over temperature, overheating, electric leakage and sensor fault alarm.(Intelligent programable LCD temperature controller is an option)
    ◆Hot-air circulating system consists of a fan keeping running under a high temperature and proper air ducts to ensure a uniform distribution of temperature in chamber.
    ◆Independent alarm system for temperature-limiting ensures experiments run safely and no accident would happen.(Option)
    ◆Recorder and printer are options which can print or record set parameters and trace variation curves of temperature.(Option)
    注:智能型液晶程序温度控制器为大屏幕液晶显示屏,多组数据一屏显示,使用方便,更具有人性化设计;可配RS485接口和电脑连接,通过电脑同步监控实验过程或记录实验数据。
    Note:Intelligent programable temperature controller is giant-screen liquid crystal display,groups-data display in one screen, easily operation;RS485 connection may link with computer to record data and control experiment.
    选购件:
    1、智能型程序液晶温度控制器
    2、独立限温控制器
    3、RS485接口
    Options:
    1、Intelltigent programable LCD temperature  controller
    2、Independent temperature-limiting controller
    3、RS485 socket

    技术参数Specifications


    型号Model              参数Parameters DGF-9030(A)
    (101-0)
    DGF-9050(A) DGF-9070(A)
    (101-1)
    DGF-9140(A)
    (101-2)
    DGF-9240(A)
    (101-3)
    DGF-9420(A)
    (101-4)
    DGF-9620(A) DGF-9920(A)
    电源电压Electrical Requirements AC220V 50Hz AC380V 50Hz
    控温范围Temperature Range RT+10~250℃
    恒温波动度Temperature Stability ±0.5℃
    温度分辨率Temperature control 0.1℃
    工作环境温度Ambient Temperature +5~40℃
    输入功率Input power 550W 800W 1100W 1550W 2050W 3500W 4000W 6000W
    容积Volume 30L 50L 80L 136L 220L 420L 620L 1000L
    内胆尺寸Interior Dimension(mm)W×D×H 340×320×320 420×395×350 450×400×450 550×450×550 600×500×750 640×585×1355 840×600×1355 1000×600×1600
    外形尺寸Overall Dimension (mm)W×D×H 620×530×490 720×590×520 740×618×630 840×670×730 880×720×930 780×750×1880 980×800×1880 1140×800×2150
    载物托架(标配)Shelves per Chamber (Momal) 2块(pcs) 2块(pcs) 2块(pcs) 2块(pcs) 2块(pcs) 3块(pcs) 4块(pcs) 5块(pcs)
    定时范围Timing Range 1~9999min
    备注Note 带“A”为不锈钢内胆Specular stainless-steel chamber is marked with an "A"
