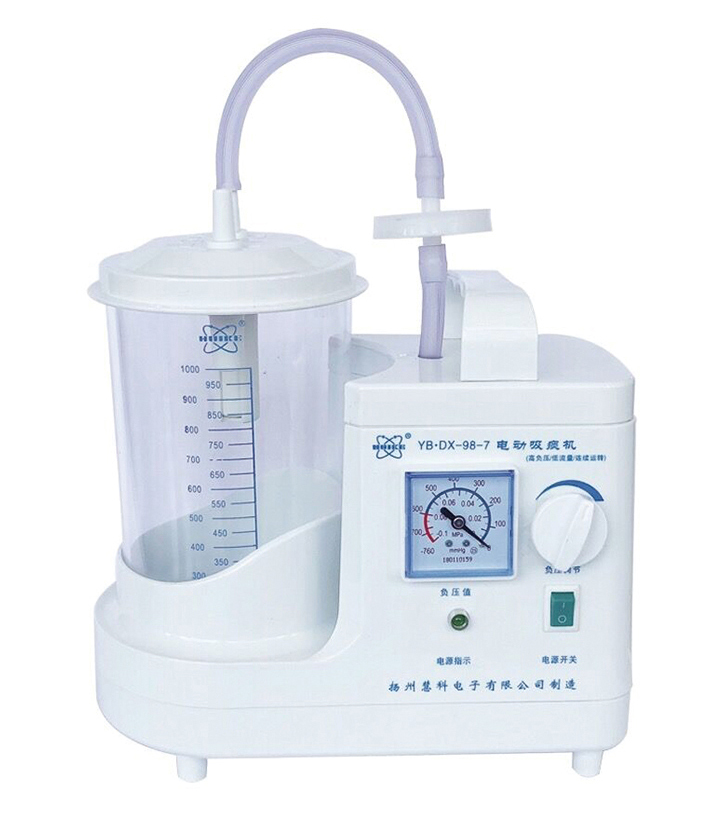

YB·DX-98-7

了解更多

    产品详情

    特点:
    1、电动吸痰机采用无油自润滑的单柱塞泵作负压吸引源,由负压泵(单柱塞泵)、负压调节器、负压指示器、收集容器组件、机箱组成;
    2、具有可根据病人的痰液的粘稠度进行无级调压的特点,能迅速吸出浓痰和粘液,减轻病人痰阻塞的痛苦,起到转危为安的作用;
    3、本机具有溢流阀安全装置,安全可靠;
    4、本机按防电击类型及程度分类为Ⅱ类设备B型应用部分,运行模式为连续运行,IPXO、非AP型或APG型普通设备;
    5、产品符合GB9706.1、YY0505、YY0636.1相关要求。

    技术指标∶
    1、负压极限值∶ ≥0.08MPa(600mmHg);
    2、负压调节范围∶ 0.02~0.08MPa(150~600mmHg);
    3、抽气速率∶泵口(出气口)≥10L/min,终端≥6L/min;
    4、电源∶ AC220V±22V,50Hz±1Hz;
    5、消耗功率∶≤30VA;
    6、噪声∶ ≤60dB;
    7、收集容器容量∶ 1000mL;
    8、工作环境∶ 温度∶+5℃~+35℃,相对湿度∶ 25℃不超过80%,大气压力∶ 86KPa~106KPa。

    FEATURES:
    1、The portable phlegm suction machine adopt the oil free self lubricating single plunger pump as the negative pressure attraction source,made of negative pressure pump (but plunger pump),negative pressure regulating machine, negative pressure indicator, collecting container components, case.
    2、It has the characteristics of non polar pressure requlating according to the viscosity of the patient, which can quickly suck out the pus and mucus, reduce the pain of the phlegm obstruction of the patient and play an important role in turning the crisis into peace.
    3、The machine has a relief valve safety device, safe and reliable.
    4、This machine is classified into B type application part of class l equipment according to the type and degree of electric shock.The run mode run continuously, IPXO, not AP model or APG conventional equipment.
    5、The product is made according to relevant requirement IEC60601-1、IEC60601-1-2、ISO10079-1.

    TECHNIQUE:
    1、Negative pressure limit: ≥0.08MPa(600mmHg);
    2、Negative pressure adjustable range: 0.02~0.08MPa(150~600mmHg);
    3、Pumping rate: hole (air vent)≥10L/min, terminal≥6L/min;
    4、Power: AC220V±22V, 50Hz±1Hz;
    5、Input: ≤30VA;
    6、Noise: ≤60dB;
    7、Collection container capacity: 1000ml;
    8、Work environment: temperature:+5℃~+35℃,relative humidity:≤80%(25℃)atmospheric pressure: 86KPa~106KPa
